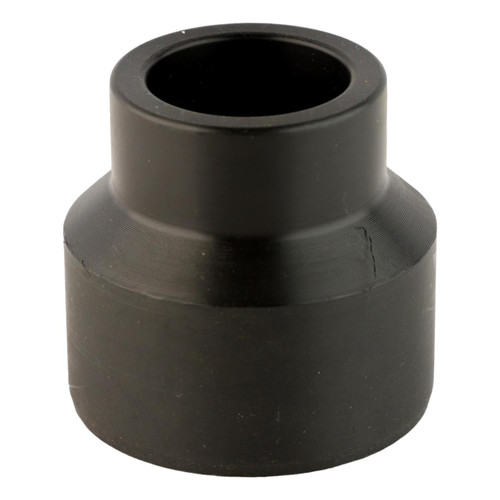

Socket Fusion Reducer Bushing - 1-1/2" PE Fusion x 1" PE Fusion

SKU:
SPB75
$6.47
We offer Preferred Contractor Pricing
Socket Fusion Reducer Bushing - 1-1/2" PE Fusion x 1" PE Fusion
Adding to cart… The item has been added

The EloFit Fittings by Nupi Americas, Socket Fusion Reducer Bushing - 1-1/2" x 1" are designed for use in water, gas, and chemical installments. Made from high quality PE4710 (PE100) material that is specifically injected into molds to create long-lasting couplers, fittings, and threaded adapters that will stand the test of time. These fittings, couplers, and adapters are utilized by fusing together with High Density Polyethylene (HDPE) IPS pipe through the socket fusion method.

    • 1-1/2in PE fusion x 1in PE fusion
    • Mfg. PN: 12EIRS11201
    • PE4710 (PE100)
    • SDR11
    • Fittings are IPS sizing
    • Bushings are designed to fuse the larger size to socket fusion tee for quick reducing joint
      • Example: take a SPT888, fuse a SPB86 into one side and you have a SPT886
    • Life expectancy of 50+ years
    • Can be connected with any IPS socket fusion iron
    • Manufactured by Nupi Americas

       Mfg.        Code

Type

Weight lbs/pc

Volume ft³/pc

 ND1 OD1 S min L1 ND2 ID2 L2 D1 L D
12EIRS11201 B 0.075 0.0053 1-1/2" IPS 1.900 0.173 1.10 1" IPS 1.315 0.79 1.22 2.05 1.73



!
