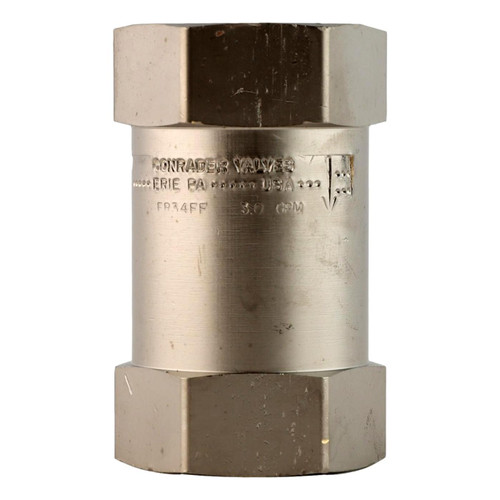

Brass/Stainless Steel Flow Regulator - 7.0 GPM - 3/4" Female Pipe Thread x 3/4" Female Pipe Thread

The Conrader FR-Series Flow Regulators are designed to deliver a constant volume of water flow output over a wide pressure drop range. The controlling mechanism consists of a flexible orifice engineered to vary its effective area inversely to the applied pressure. At pressures above the threshold pressure (15-25 PSI) the orifice distorts reducing the opening size to maintain the output flow rate to within ±15% up to pressure drops of 125 psi. 7 GPM Flow Control Valve for continuous regulation of water flow.

• 3/4" Female Iron Pipe x 3/4" Female Iron Pipe (FIP)
• connection type: FPT x FPT
• material: brass/stainless steel
• inlet: 3/4 inch
• outlet: 3/4 inch
• flow rate: 7.0 GPM
• threshold pressure: 15-25 PSI
  • point at which orifice changes to maintain flow rate
• max. system pressure: 200 PSI
• max. water temperature: 180°F
• Mfg. PN: FRGC7570
• safe for potable water use
• comparable to Dole Flow Regulator
• used primarily for open-loop geothermal systems
• Manufactured by Merrill Manufacturing
